Zenith Ultrasonic Cleaner Comparison & Specifications

FEATURES	ADVANTAGE Automated Parts Washer	TRANSTAR Automation System	ORBIT Conveyor System	ULTRAMATIC HV Multi-Process	VORTEX Small Parts Washer	AEROCLEAN Aerospace Washer

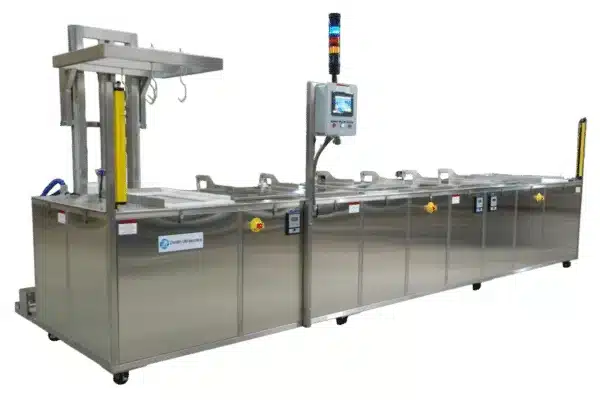

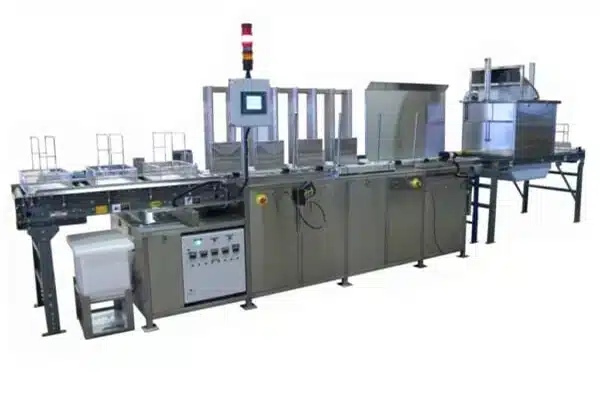

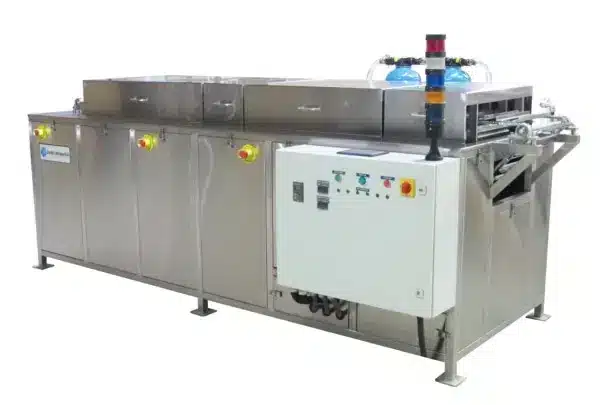

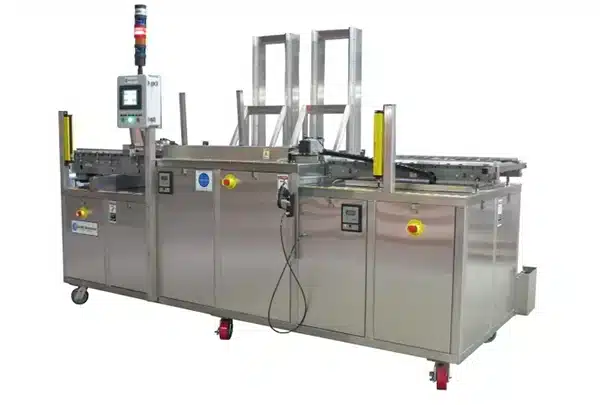

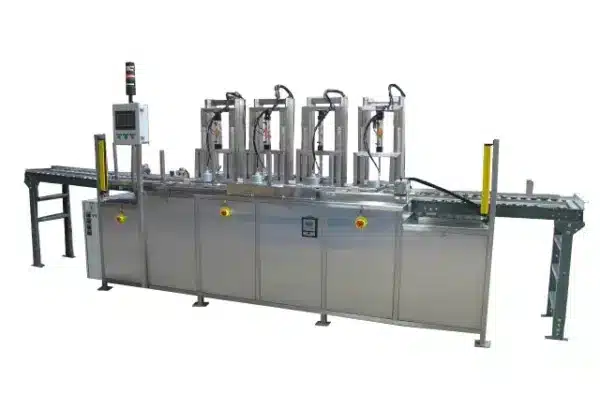

Best For	Industrial Part Washing using Patented Automated Platform	Semiconductor & Cleanroom Applications or Part Loads Over 250 Pounds	High-volume Basket-less Continuous Small Part Washing	Industrial Part Washing with Smaller Footprint Machine	Ultra-High-Speed Industrial Small Parts Washing	Aerospace or Similar Parts with Intricate design, Internal Channels, Cavities, etc.
Automation Type	Patented Walking Beam with Ultrasonic Enhancement	Servo Motor Controlled X-Y Basket Positioner	Continuous Basket-less Belt Conveyor	Patented Walking Beam with Ultrasonic Enhancement	Walking Beam with Centrifugal Rotation in All Tanks	Patented Walking Beam with Ultrasonic Enhancement
PLC/HMI	Included High-Resolution Touchscreen with Recipe Control	Included High-Resolution Touchscreen with Recipe Control	Included High-Resolution Touchscreen with Recipe Control	Included High-Resolution Touchscreen with Recipe Control	Included High-Resolution Touchscreen with Recipe Control	Included High-Resolution Touchscreen with Recipe Control
Cleaning Process	Timed Ultrasonics with Programmable Intermittent Agitation During Process	Timed Ultrasonics with Programmable Agitation Prior to Basket Transfer	3-Frequency 3-sided Ultrasonics with Filtered Spray	Timed Ultrasonics with Programmable Intermittent Agitation During Process	Timed Ultrasonics with Programmable Intermittent Basket Rotation	Ultrasonics with Programmable Intermittent Agitation During Process
Rinsing Process	Timed Submersion Rinse with Programmable Intermittent Agitation During Process	Timed Submersion Rinse with Programmable Agitation Prior to Basket Transfer	Submersion Ultrasonic Rinse with Final Spray Rinse	Timed Submersion Ultrasonic Rinse with Programmable Intermittent Agitation During Process	Timed Submersion Rinse with Programmable Intermittent Basket Rotation	Timed Submersion Rinse with Programmable Intermittent Agitation During Process
Drying Process	Recirculated Hot Air up to 250 Degrees F with Optional HEPA Filter	Recirculated Hot Air up to 250 Degrees F with Optional HEPA Filter	Air Knives or Air Knives with Optional Heated Drying Tunnel	Recirculated Hot Air up to 250 Degrees F with Optional HEPA Filter	Recirculated Hot Air up to 250 Degrees F with High-Speed Centrifugal Rotation	Recirculated Hot Air up to 250 Degrees F, 2-position Automated Dryer Tunnel
Filtration	Dual Stainless Steel Cartridge or Bag Filter Housing, Magnetic-drive Seal-less Pump	Dual Stainless Steel Cartridge or Bag Filter Housing, Magnetic-drive Seal-less Pump	Dual Stainless Steel Cartridge or Bag Filter Housing, Magnetic-drive Seal-less Pump	Dual Stainless Steel Cartridge or Bag Filter Housing, Magnetic-drive Seal-less Pump	Dual Stainless Steel Cartridge or Bag Filter Housing, Magnetic-drive Seal-less Pump	Dual Stainless Steel Cartridge or Bag Filter Housing, Magnetic-drive Seal-less Pump
Customizable?	Yes	Yes	Yes	Yes	Yes	Yes
Maintenance Requirements Low	✔	✔	✔	✔	✔	✔
Made in USA	✔	✔	✔	✔	✔	✔
CROSSFIRE™ Multiple Frequency Technology	✔	✔	✔	✔	✔	✔
Ultrasonic Frequencies (25/40/80/130 kHz)	✔	✔	✔	✔	✔	✔
System Warranty ( all parts and labor)	2 Years Comprehensive Warranty	2 Years Comprehensive Warranty	2 Years Comprehensive Warranty	2 Years Comprehensive Warranty	2 Years Comprehensive Warranty	2 Years Comprehensive Warranty
Transducers Warranty	10 Years	10 Years	10 Years	10 Years	10 Years	10 Years
Customer Support	Included	Included	Included	Included	Included	Included
Explore More	ADVANTAGE Automated Parts Washer	TRANSTAR Automation System	ORBIT Conveyor System	ULTRAMATIC HV Multi-Process	VORTEX Small Parts Washer	AEROCLEAN Aerospace Washer
