Electronic Circuit Ultrasonic Cleaner
Eliminate flux residues, ionic contamination, and micro-particulates without risking component micro-fracturing, trace lifting, or crystal oscillator damage.
Post-reflow flux residue, solder paste, and ionic contamination left on a populated board don’t just sit there quietly. Over time, they attract moisture, and moisture plus ionic residue creates the conditions for dendritic growth – microscopic metallic filaments that bridge conductors and cause electrical shorts, often months after the board has shipped. Manual scrubbing and brush cleaning can’t reach underneath low-standoff components like BGAs and QFNs, leaving exactly the contamination that causes field failures untouched. And reaching for a standard, aggressive low-frequency ultrasonic washer to compensate introduces a different risk: enough raw cavitation intensity to micro-crack delicate solder joints and damage fine-pitch components in the process.
This is the gap Zenith’s industrial-grade ultrasonic cleaner electronics systems are engineered to close – delivering controlled, high-frequency cavitation and gentle fluid motion that removes flux, ionic residue, and micro-particulates without the mechanical risk that comes with generic ultrasonic equipment. Zenith has spent more than 80 years engineering ultrasonic cleaning systems in the USA, and that engineering discipline is exactly what ultrasonic cleaning electronics applications demand: process control precise enough to protect a $2,000 board while still meeting the cleanliness standards your customers audit against.
Made in the USA
Custom Engineered Solution
Comprehensive Warranty

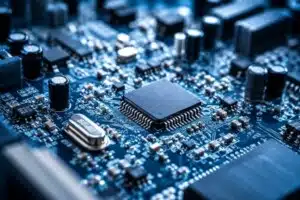

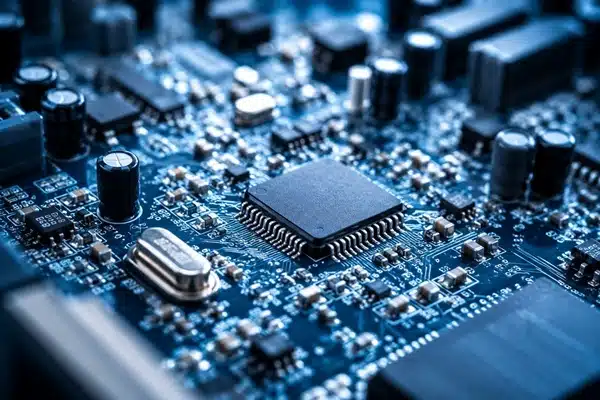

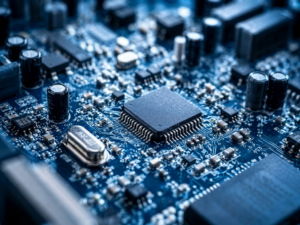

Electronic Industry Challenges
Electronics and semiconductor manufacturers operate under a contradiction: components keep getting smaller and more densely packed, while cleanliness requirements keep getting tighter. Fine-pitch BGAs, QFNs, and microBGA packages sit with standoff heights measured in fractions of a millimeter — leaving almost no clearance for flux residue and particulate to escape during reflow, and almost no access for a brush or spray nozzle to reach it afterward.
At the same time, “no-clean” flux formulations – designed to be left on the board – are increasingly failing to stay inert in humid or high-reliability environments, driving manufacturers back toward active post-reflow cleaning. Ionic contamination that would have been cosmetically invisible a decade ago now shows up as a documented compliance failure under IPC-J-STD-001 and customer-specific cleanliness specifications.
Zenith addresses this with PCB ultrasonic cleaner systems built around controlled, multi-frequency cavitation rather than raw power – reaching under low-standoff components and into fine-pitch geometry without the mechanical risk that comes with a single aggressive low-frequency tank. Every system can be configured with the frequency, chemistry, and cycle parameters matched to your specific board population and contamination profile.
Which Zenith System Fits Your Situation
Zenith offers multiple platforms suited to different electronics cleaning volumes and configurations:
- ADVANTAGE® Automated Ultrasonic Washer: Patented automation (US Patent 10,112,221) that eliminates internal basket support structures, maximizing ultrasonic energy delivery to populated boards and assemblies.
- TRANSTAR Automated Cleanroom Washer: Overhead gantry pick-and-place automation that transfers boards through multi-stage cleaning without manual handling – the preferred choice for cleanroom and controlled-environment electronics manufacturing.
- SSS-132 Ultrasonic Strip Washer: Reel-to-reel cleaning for continuous strip and component-carrier material, with a double-length ultrasonic chamber and integrated CROSSFIRE® Multiple Frequency Ultrasonics for higher-speed processing.
- SSS-960 Metal Strip Washing Systems: Reel-to-reel ultrasonic cleaning through multiple chambers in sequence, suited to continuous processing of strip and carrier materials used in electronic component manufacturing.
- Metal Strip Cleaners & Strip Washers: Zenith’s full family of reel-to-reel strip cleaning systems for continuous processing applications across electronics and precision manufacturing.
- Table-Top Cleaners: Compact, bench-top systems for lower-volume board cleaning, rework, prototyping, and repair applications.
Why Choose a Zenith Ultrasonic Cleaner for Electronics and Semiconductor?
Zenith’s ultrasonic cleaner for circuit boards systems is designed specifically for the constraints electronics manufacturing imposes – not adapted from general industrial cleaning platforms. Frequency, cavitation intensity, and fluid motion are engineered to remove flux and ionic contamination from beneath low-standoff components without the mechanical stress that damages fine-pitch solder joints, crystal oscillators, and MEMS devices.
Every system can incorporate Zenith’s CROSSFIRE® Multi-Frequency Technology, combining the scrubbing action of lower frequencies with the gentler, more evenly distributed cavitation of higher frequencies – matched to the specific board population and contamination profile rather than a single fixed setting.
Every Zenith system is backed by a 2-year parts and labor warranty and a 10-year transducer warranty against bond failure, depolarization, or deterioration of internally mounted elements – coverage that reflects equipment built for continuous production duty, not intermittent light use.
What Electronic & Circuit Items Can Be Ultrasonically Cleaned?
- Printed circuit boards (bare and populated, waterproof components)
- PCB assemblies with BGA/microBGA packages
- Electronic sub-assemblies and modules
- Boards requiring flux, ionic, and particulate removal
- Rework/repair and returned/reconditioned boards
Will Ultrasonic Cleaning Damage the Electronic Products?
This is the question every buyer asks before committing expensive boards to an ultrasonic process and it deserves a direct answer: ultrasonic cleaning is safe for waterproof and sealed components when frequency, cycle time, and cleaning solution are correctly matched to the board and its population. The real risk factors are non-waterproof or unsealed components, incompatible solvents, and improper drying or rinsing – not the ultrasonic cleaning process itself.
This is precisely why Zenith’s CROSSFIRE® Multifrequency technology exists: combining frequencies gives you the scrubbing power needed to remove bonded flux residue with the gentler, evenly distributed cavitation that protects fine-pitch components and delicate solder joints – rather than forcing a choice between cleaning power and component safety.
The only way to know for certain how your specific boards will respond is to test them.
Why Trust Zenith Ultrasonics
- Made in USA: Over 80 years of American engineering experience building ultrasonic cleaning systems.
- Comprehensive Warranty: 2-year parts and labor coverage, plus a 10-year transducer warranty.
- VeriClean Testing: Validate the cleaning process on your actual boards before you buy – not after installation, when it’s too late to change course.
Weighing whether to trust an unfamiliar process with expensive, populated boards? VeriClean testing removes the guesswork: you see documented results on your own parts before any purchase commitment.
