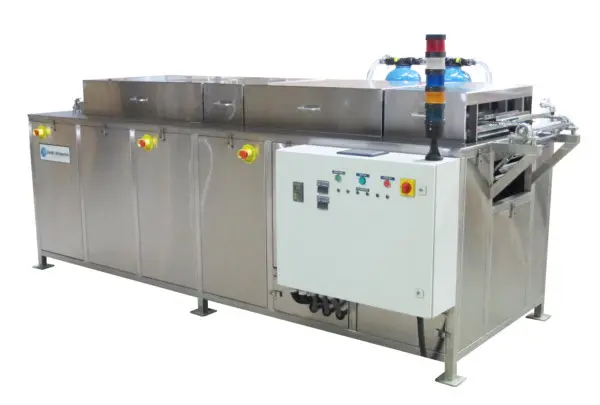

ORBIT Basket-less Conveyor Ultrasonic Cleaner

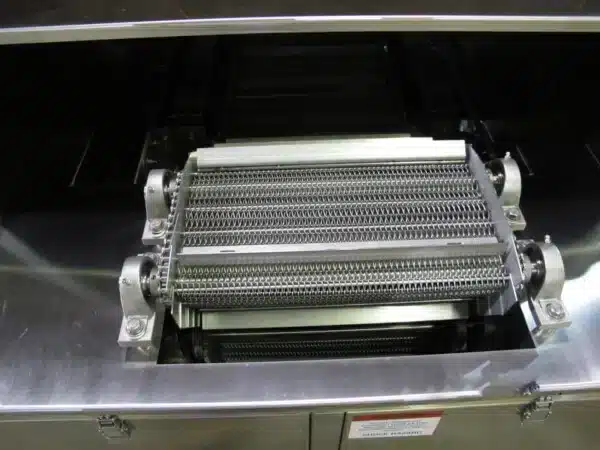

The Orbit Conveyor Ultrasonic Cleaner is a clean/rinse/dry system that was designed for industrial or ultra-critical cleaning applications. The system eliminates the needs for baskets which are used in a traditional ultrasonic cleaning system Parts are placed onto a moving conveyor belt directly, and are moved through the system continuously or intermittently depending on your needs. A combination of several cleaning, rinsing, and drying technologies are included to ensure that parts are perfectly clean and residue free. Parts exit the system at the opposite end and can be deposited into bulk collection containers or simply removed using other available means. Your operators will never have to load or unload parts from processing baskets or transfer empty baskets back to the loading area in the Orbit conveyor ultrasonic system.

Request A Quote

Made in the USA

Custom Engineered Solution

Comprehensive Warranty

Get In Touch

ORBIT Cleaning System Specifications

14.5″ conveyor belt width, other sizes are available.
Variable Frequency Drive for conveyor speed adjustments.
High-power CROSSFIRE Multiple Frequency Ultrasonic Systems in both cleaning and rinsing chambers.
Universal stainless steel filtration systems that accept standard or “absolute” filter cartridges.
All stainless steel construction.
Includes submersion ultrasonic cleaning, spray cleaning, submersion ultrasonic rinsing and spray rinsing on all parts passing through the system.
Devices to reduce detergent drag-out from the cleaning chamber to rinsing chamber extends the life of rinse water and deionization resins if the deionization system option is purchased.
5-color light tower for operator alerts
Stainless steel process area covers.
Tubular stainless steel support frame and conveyor belting.
Industrial-grade components and controls for continuous-duty operation.
Color touch-screen HMI and PLC control system for the ultimate in operational convenience.
Internally and externally-welded tanks with support bands for superior strength.
